SolidWorks PDM二次开发—获取库中的文件信息

在休息了一个月之后，博客继续开始更新。
今天我们简单一点，直接上代码。

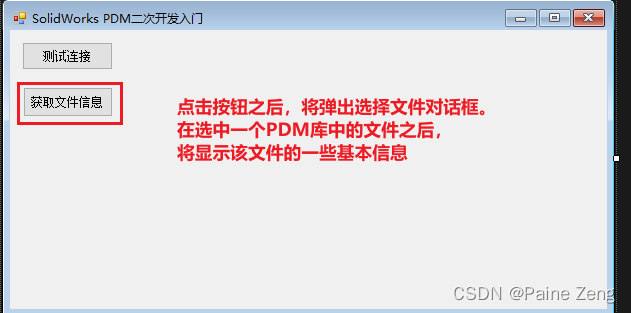

		private void btnGetSelectFileInfo_Click(object sender, EventArgs e)
        {
            try
            {
                var vault = new EdmVault5();
                //登陆到库中
                vault.LoginAuto("PDM2020Default", this.Handle.ToInt32());

                //如果用户登录成功，显示下本地库根目录路径
                if (!vault.IsLoggedIn) return;
                OpenFileDialog openFileDialog = new OpenFileDialog();
                openFileDialog.InitialDirectory = vault.RootFolderPath;
                openFileDialog.Multiselect = false;
                if (openFileDialog.ShowDialog() != DialogResult.OK) return;
                GetFileInformation(vault, openFileDialog.FileNames[0]);
                return;
            }
            catch (Exception exception)
            {
                Console.WriteLine(exception);
                throw;
            }
        }


   		 /// <summary>
        /// 显示库文件中的一信息
        /// </summary>
        /// <param name="vault1">库对象</param>
        /// <param name="filePath">文件路径</param>
        private void GetFileInformation(IEdmVault5 vault1, string filePath)
        {
            try
            {
                IEdmVault7 vault2 = null;
                vault2 = (IEdmVault7)vault1;

                IEdmFile14 aFile = default(IEdmFile16);
                IEdmFolder5 ppoRetParentFolder;
                aFile = (IEdmFile16)vault2.GetFileFromPath(filePath, out ppoRetParentFolder);

                //Get configurations 获取配置
                string msg = "Configurations: " + "\r\n";
                IEdmFolder5 folder = default(IEdmFolder5);
                folder = vault2.RootFolder;

                EdmStrLst5 cfgList = default(EdmStrLst5);
                cfgList = aFile.GetConfigurations();

                IEdmPos5 pos = default(IEdmPos5);
                pos = cfgList.GetHeadPosition();
                while (!pos.IsNull)
                {
                    var cfgName = cfgList.GetNext(pos);
                    msg = msg + cfgName + "\r\n";
                }

                msg = msg + "\r\n";

                //Get type of file 文件类型
                int typ = 0;
                typ = (int)aFile.FileType;
                msg = msg + "EdmFileType: " + typ + "\r\n";

                msg = msg + "\r\n";

                //Get category of file 文件类别
                IEdmCategory6 cat = default(IEdmCategory6);
                cat = aFile.Category;
                if ((cat != null))
                {
                    msg = msg + "Category: " + cat.Name + ", Category ID: " + aFile.CategoryID + "\r\n";
                    msg = msg + "\r\n";
                }

                //Get local file timestamp 文件时间戳
                filePath = aFile.Name;
                object fileDate = null;
                fileDate = aFile.GetLocalFileDate(filePath);

                if ((fileDate != null))
                {
                    string text = null;
                    text = fileDate.ToString();
                    msg = msg + aFile.GetLocalPath(folder.ID) + " was modified " + text + "\r\n";
                }
                else
                {
                    msg = msg + "There is no local copy of the file" + "\r\n";
                }

                msg = msg + "\r\n";

                //Get local version number 本地版本
                int versionNo = 0;
                versionNo = aFile.GetLocalVersionNo(aFile.GetLocalPath(folder.ID));

                if (versionNo == -1)
                {
                    msg = msg + "The local copy of " + aFile.Name + " does not match any existing versions" +
                          "\r\n";
                }
                else
                {
                    string versionStr = null;
                    versionStr = versionNo.ToString();
                    msg = msg + "The local copy of " + aFile.Name + " has version " + versionStr + "\r\n";
                }

                msg = msg + "\r\n";

                //Get current version 当前版本
                int ver = 0;
                ver = aFile.CurrentVersion;
                msg = msg + "Current version: " + ver + "\r\n";

                msg = msg + "\r\n";

                //Get local revision name 本地修订名称
                string revName = null;
                revName = aFile.GetLocalRevisionName(aFile.GetLocalPath(folder.ID));

                if (string.IsNullOrEmpty(revName))
                {
                    msg = msg + "The local copy of " + aFile.Name + " does not match any existing revisions" +
                          "\r\n";
                }
                else
                {
                    msg = msg + "The local copy of " + aFile.Name + " has revision name " + revName + "\r\n";
                }

                msg = msg + "\r\n";

                //Get current revision 获取当前修订
                revName = aFile.CurrentRevision;
                msg = msg + "Current revision: " + revName + "\r\n";

                msg = msg + "\r\n";

                //Get current workflow state 当前流程状态
                IEdmState5 state = default(IEdmState5);
                state = aFile.CurrentState;
                msg = msg + "Current workflow state: " + state.Name + "\r\n";

                msg = msg + "\r\n";

                //Get whether the file is checked out 是否检出
                bool checkedOut = false;
                checkedOut = aFile.IsLocked;
                msg = msg + "File is checked out? " + checkedOut + "\r\n";
                if (checkedOut)
                {
                    msg = msg + "Lock path: " + aFile.LockPath + "\r\n";
                    msg = msg + "Locked by: " + aFile.LockedByUser.Name + ", User ID: " + aFile.LockedByUserID +
                          "\r\n";
                    msg = msg + "Locked in: " + aFile.LockedInFolder.Name + ", Folder ID: " + aFile.LockedInFolderID +
                          "\r\n";
                    msg = msg + "Locked on: " + aFile.LockedOnComputer + ", Vault View ID: " + aFile.LockedOnViewID;
                }


                MessageBox.Show(msg);
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

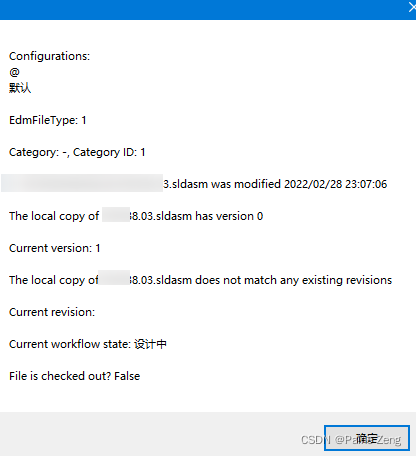

结果显示:

文件还是老地方:
https://gitee.com/painezeng/solidworks-pdmprofessional-apistudy.git
